Stihl MS 650 and MS 660 chainsaw carburetor removal and refitting guide will help with any carburetor cleaning, replacement, inspection and correct running of the chainsaw. A Service Manual detailing the Carburetor removal and refitting procedures, as well as more complete chainsaw repair information, is available to download. Also a Stihl MS650 and MS660 Parts List, Operator Manual, and carburetor manual are also available to view or download as a PDF which can be read on any device or printed.
Stihl MS 660 Chainsaw (MS660 Magnum) Parts Diagram Select a page from the Stihl MS 660 Chainsaw diagram to view the parts list and exploded view diagram. All parts that fit a MS 660 Chainsaw. Pages in this diagram. Clutch - Chain sprocket. 60 product ratings - STIHL CHAINSAW MS660 NAME TAG BADGE NEW OEM # 1122 967 1506 - UP308A $6.95 Trending at $7.29 Trending price is based on prices over last 90 days. Enjoy the videos and music you love, upload original content, and share it all with friends, family, and the world on YouTube.
Jul 08, 2013 - Stihl MS 660 / MS 660 W / MS 660 Magnum / MS 660 Magnum R / MS 660 Arctic / MS 660 Magnum BR (1122) Chain Saw. Service manuals: - Stihl 009 / 010 / 011 Chain Saw. MS 660 English 2 This Instruction Manual refers to a STIHL chain saw, also called a machine in this Instruction Manual. Pictograms The meanings of the pictograms attached to or embossed on the machine are explained in this manual. Depending on the model concerned, the following pictograms may be on your machine.
- Stihl MS 361 Parts list Manual
- Product on sale
Removing and Installing
The following servicing procedures show a carburetor without limiter caps. The procedures are exactly the same on carburetors with limiter caps.
- Unscrew the nuts (arrows).
- Pull off the flange (1).
- Remove the filter base (arrow).
– Wash the filter mesh in the filter base thoroughly in a fresh, non- flammable cleaning solution and blow out with compressed air.
Stihl Ms 660 Magnum
If filter mesh is damaged, install a new filter base.
Reassemble in the reverse sequence.
- Remove filter base – b 12.1
- Pull the grommet (1) off the adjusting screws and out of the housing.
– Open the throttle wide.
- Hold the throttle shaft (1) steady (arrow).
- Release the throttle trigger and take the rod (2) out of the throttle shaft.
1
- Remove the baffle plate (1).
- Pull the heating element off the studs.
- Before fitting the carburetor, check that the sleeve (1) and washer (2) are in place.
Stihl Ms 660 Chainsaw
- Fit the grommet so that the tabs
(1) engage behind the inside of the housing.
- On machines with carburetor heating, make sure that wiring is properly positioned – b 15.2
- Pull the fuel hose (1) off the carburetor.
1
- When pushing the carburetor into position, check that the impulse hose (1) is correctly seated.
- Connect the fuel hose (2).
- Remove the carburetor.
Reassemble in the reverse sequence.
- Squeeze the throttle trigger and hook the rod (2) to the throttle shaft (1).
Stihl MS 650 and MS 660 Chainsaw Carburetor removal and refitting.

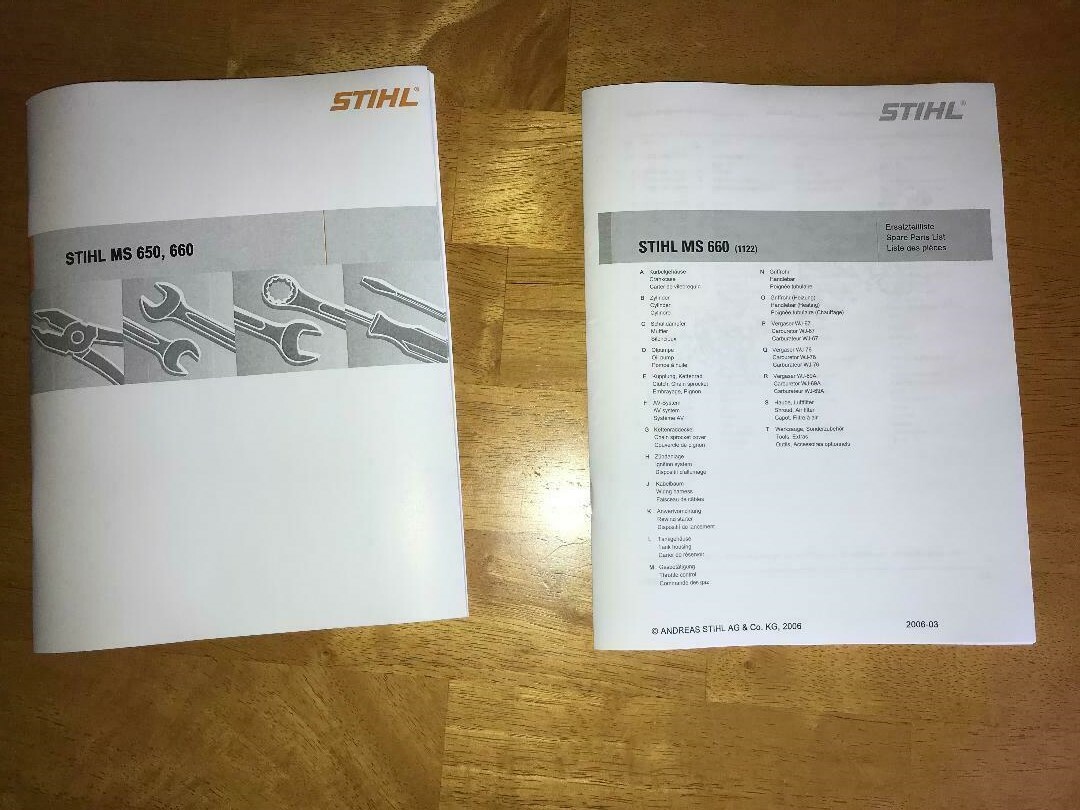

This is the complete factory service repair workshop manual for the Stihl MS 650, MS 660.This Service Manual has easy-to-read text sections with top quality diagrams and instructions.They are specifically written for the do-it-yourselfer as well as the experienced mechanic.With step by step instruction & highly detailed exploded pictures & diagrams to show you how to complete the required job correctly & efficiently Using. Stihl MS 650, MS 660 Service Repair Workshop Manual covers every single detail on your machine.provides step-by-step instructions based on the complete disassembly of the machine.This repair manual is an inexpensive way to keep you vehicle working properly.
